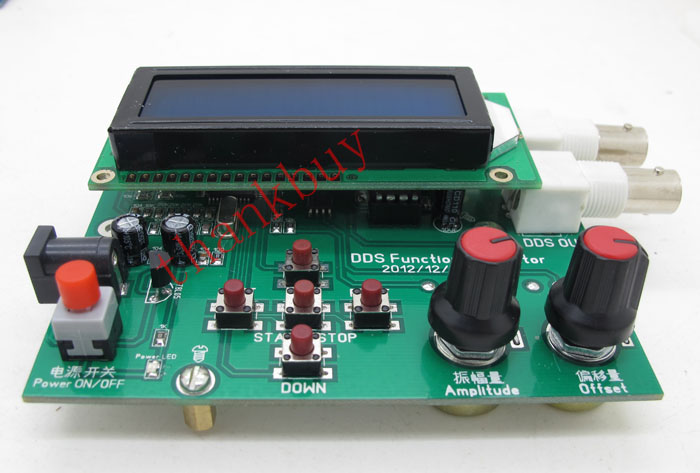

DDS2 Function Generator

*Operating voltage: DC7-9V
*DDS frequency range: 1HZ-65534Hz.
*High frequency (HS) square wave: 1 MHZ / 2 MHZ / 4 MHZ / 8 MHZ signal
*DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers;
*DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave.
*1602 LCD menu.
*Section into the value: 1,10,100,1000,10000 Hz.
*The power automatically restore the last used configuration.
*Offset: 0.5pp-5Vpp
*Amplitude amount: 0.5Vpp-14Vpp

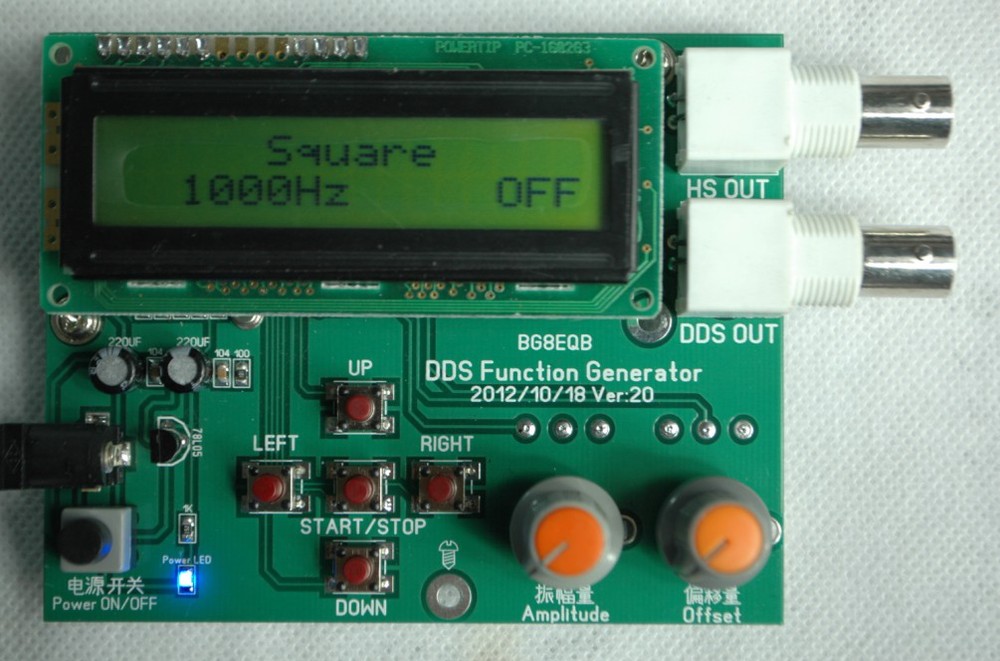

*KEY FUNCTIONS:
The UP output waveform select
The DOWN output waveform select
LEFT output frequency -
RIGHT output frequency +
STOP / RUN the output stop / start
*"UP" key waveforms order:
*ECG = electrocardiogram wave (in the OFF state, the "left "and "right" keys to set the output frequency. Middle button start, all of the following waveform set)
Rev Sawtooth = reverse sawtooth
SawTooth = sawtooth
Triangle = triangle wave
Square = square wave
