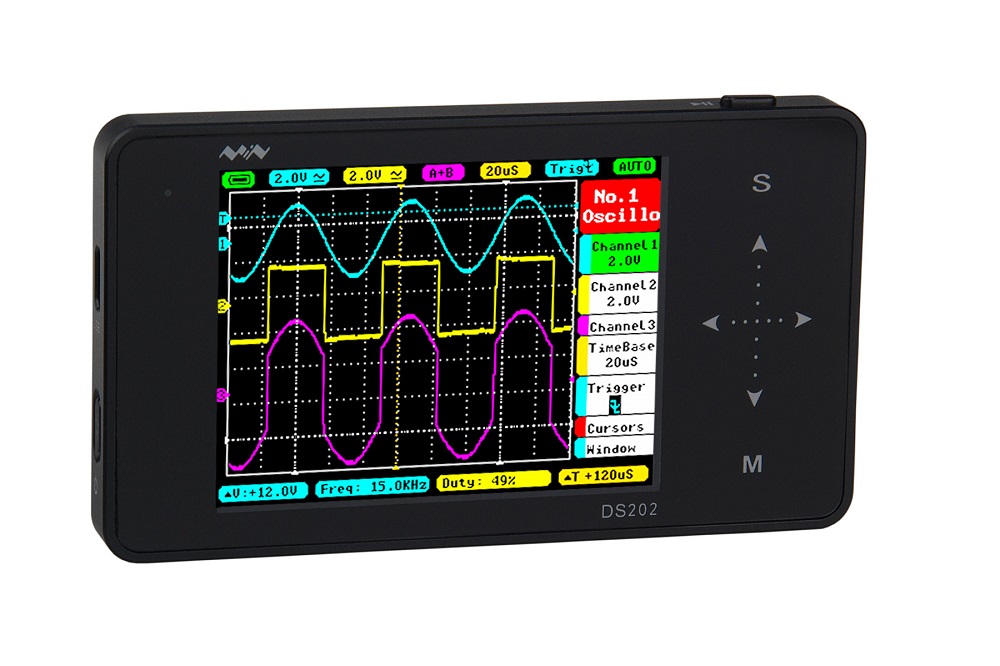

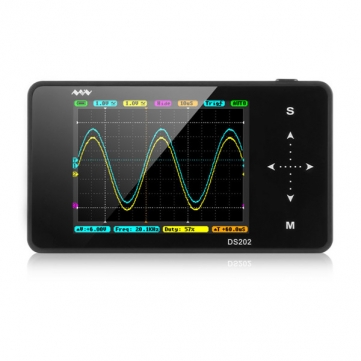

DS202 Dual-Channel Oscilloscope

■ analog channel signal bandwidth of 2MHz

■ maximum sampling rate 10Mps

■ Maximum sample memory depth 8K

■ analog channel standard input impedance 1MΩ

■ Maximum input voltage analog channel ± 40V (X1 probe)

■ Analog channel input coupling: AC / DC

■ analog channel input sensitivity range: 10mv / Div ~ 10V / Div (1-2-5 Step)

■ You can set the adaptive vertical range mode

■ Horizontal scanning time base range: 1uS / Div ~ 2S / Div (1-2-5 Step)

■ You can set the adaptive horizontal scanning range mode

■ Independent channel display -A, -B, A + B, AB, RecA, RecB and other operational waveform

■ with Auto, Normal, Single, None, Scan synchronous mode

■ with rising / falling edge, high / low level triggered mode

■ You can set the adaptive trigger threshold mode

■ measurable signal frequency / period / duty cycle, peak voltage / RMS / Max / Min / Average

■ Built-in 10Hz ~ 1MHz square wave (adjustable empty share) or 10 ~ 20KHz analog sine / triangle / sawtooth test signal source

■ Built-U disk storage capacity of 8MB, can store waveform data and waveform images

■ Built-in 600mAh lithium battery, using USB port charging

■ Color TFT LCD display (resolution of 320 × 240)

■ capacitive touch key input, gesture input support slide

■ Machine size (100mm × 56mm × 10mm)
