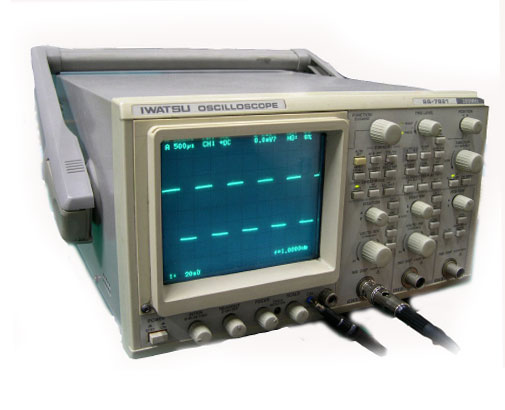

Ossilloscope Iwatsu ss7821 200mhz

Iwatsu SS7821 Features

• DC – 200MHz, 3 CH, 8 traces
• CH3 sensitivities of 50 mV, 100 mV, 500 mV/div
• Save/recall of up to 32 panel settings
• Quick auto setup
• ?2% accuracy for vertical axis sensitivity
• Bright & sharp display with 16 kV accelerating voltage CRT (Japan made)
• Cursor measurement/panel settings readout function
• Full TV triggering with field and line selection, HDTV
• CH2 output
• Maximum sensitivity 2 mV/div. Fastest sweep of 1 ns/div
• 5-digit frequency count

Iwatsu SS7821 Specifications

• Frequency Range/ Bandwith 200 MHz
• Number of Channels 3 CH
• Type (D/A) Analog
• Save/recall of up to 32 panel settings
• Quick auto setup
• Full NTSC, PAL (SECAM), HDTV TV triggering with field and line
• 2 mV/div high sensitivity and 1 ns/div sweep rate
• 5-digits frequency counter
• Cursor function
• 50 mV, 100 mV, 500 mV/div CH3 ranges
