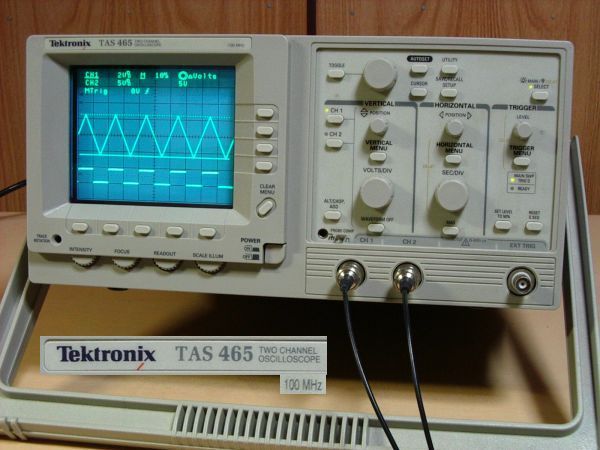

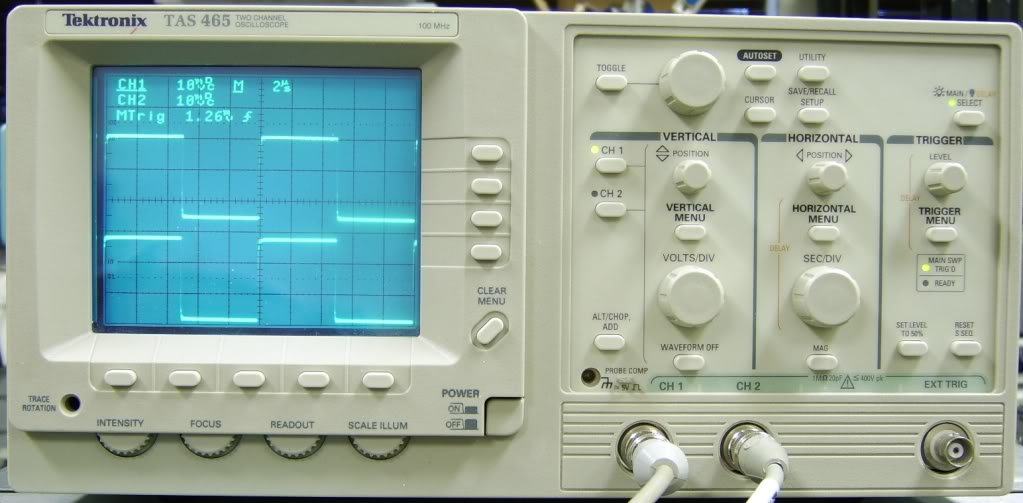

Ossilloscope Tektronix TAS 465 100Mhz

tas465 Tektronix TAS465 CRT readout Tektronix oscilloscope TAS465,100MHz

Performance description
bandwidth of 100MHz / 200MH
rise time of 3.5ns
Number of Channels 2ch
minimum vertical sensitivity of 2 mV / div
maximum vertical sensitivity 5 V / div
vertical accuracy (or offset factor) 2.5%
Input impedance 1 Mohm
Input Coupling AC, DC, GND
Maximum input voltage 400 V (dc + p

Minimum main time base 20 ns / div
supreme master time base 0.5 s / div
B sweep time base (low) 20 ns / div
sweep time base B (high) 5 ms / div
time base zoom factor x10
timebase accuracy 2%
Trigger Source External, Internal
trigger sensitivity 0.3 mV
CRT Monochrome Display type
calibration
