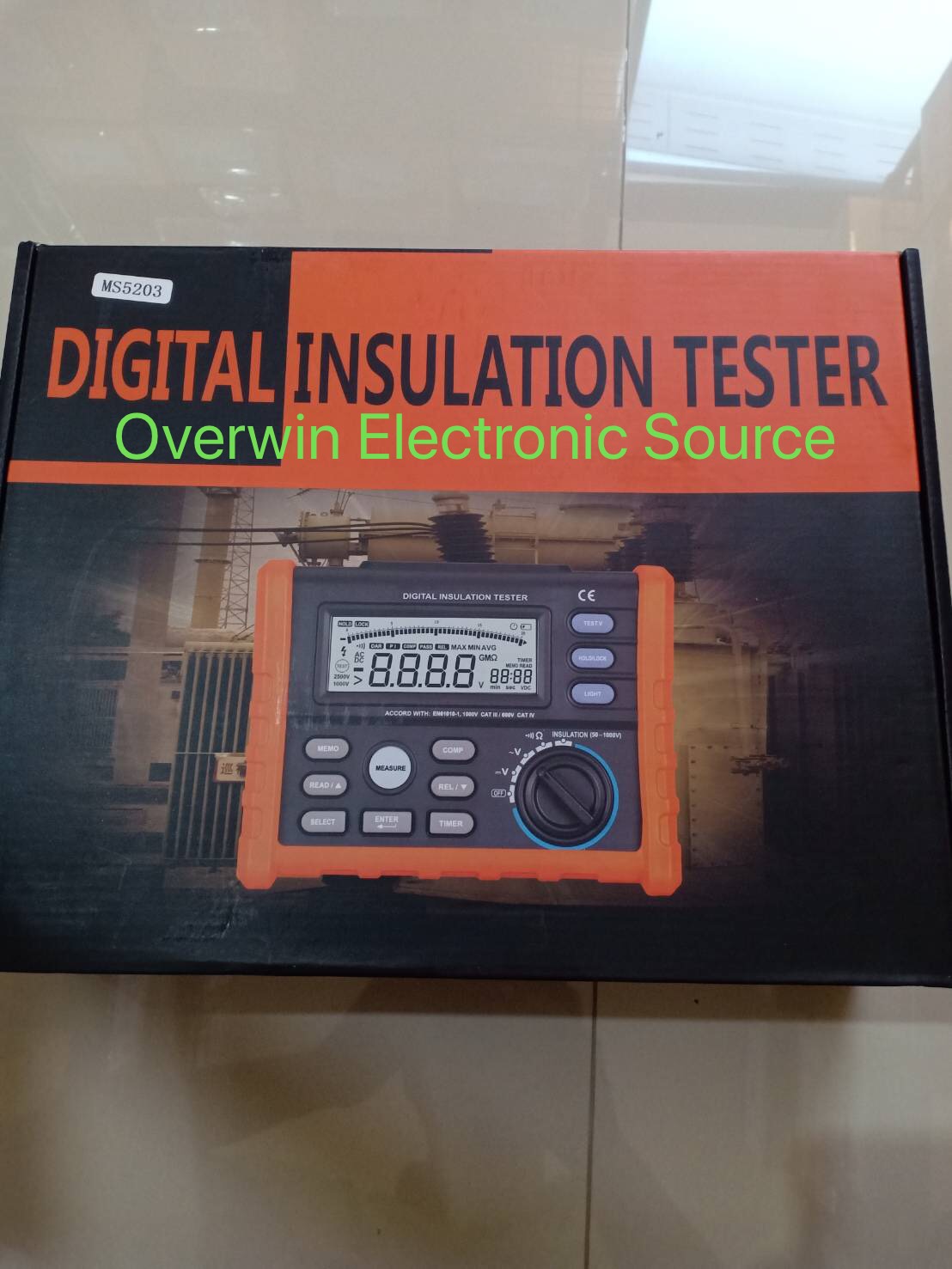

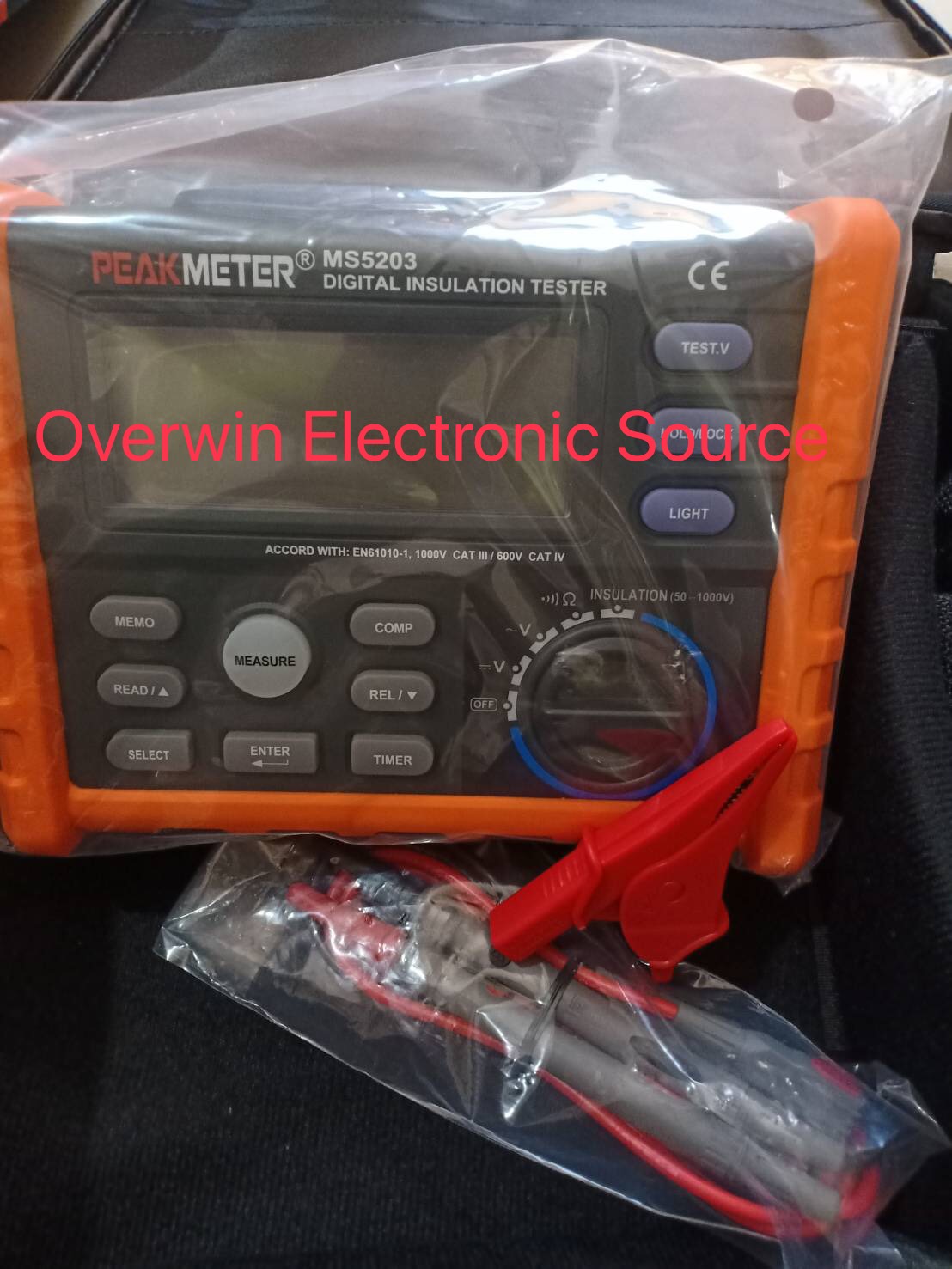

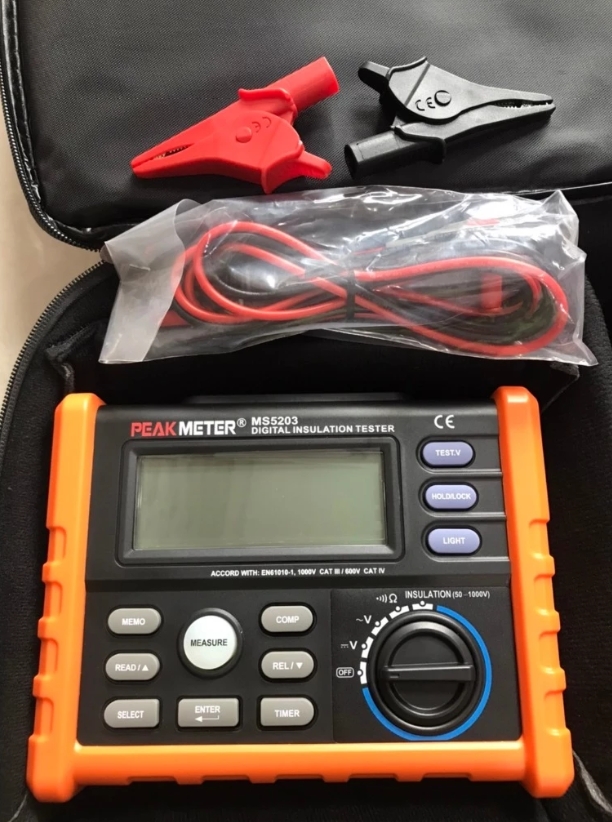

PM5203 MS5203 สินค้าพร้อมส่ง

Insulation Tester

Source Output Voltage

Measuring Range

50V( 0 %～+20%)

0.01MΩ～50MΩ±(3%+5)

100V( 0%～+20%)

0.01MΩ～100MΩ±(3%+5)

250V( 0%～+20%)

0.01MΩ～250ΩM±(3%+5)

500V( 0%～+20%)

0.01MΩ～500MΩ±(3%+5)

1.00GΩ～5.00GΩ±(5%+0.1GΩ)

1000V( 0%～+20%)

5.00GΩ～10.00GΩ±(10%+0.2GΩ)

Short Circuit Current

1.8mA

Multimeter functions

DC Voltage Test

0.1～1000V±0.5%

AC Voltage Test

0.1～750V±1%

Continuity Test

0.01Ω～200Ω±0.5%

General

PowerSupply

6x1.5v AA batteries

Product Size

180mm x 140mm x65mm (7.1” x 5.5” x 2.6”)

Product Weight

950g(2.0lb)

Category

CE ETL CAT Ⅲ1000V.CATⅣ600V RoHS
