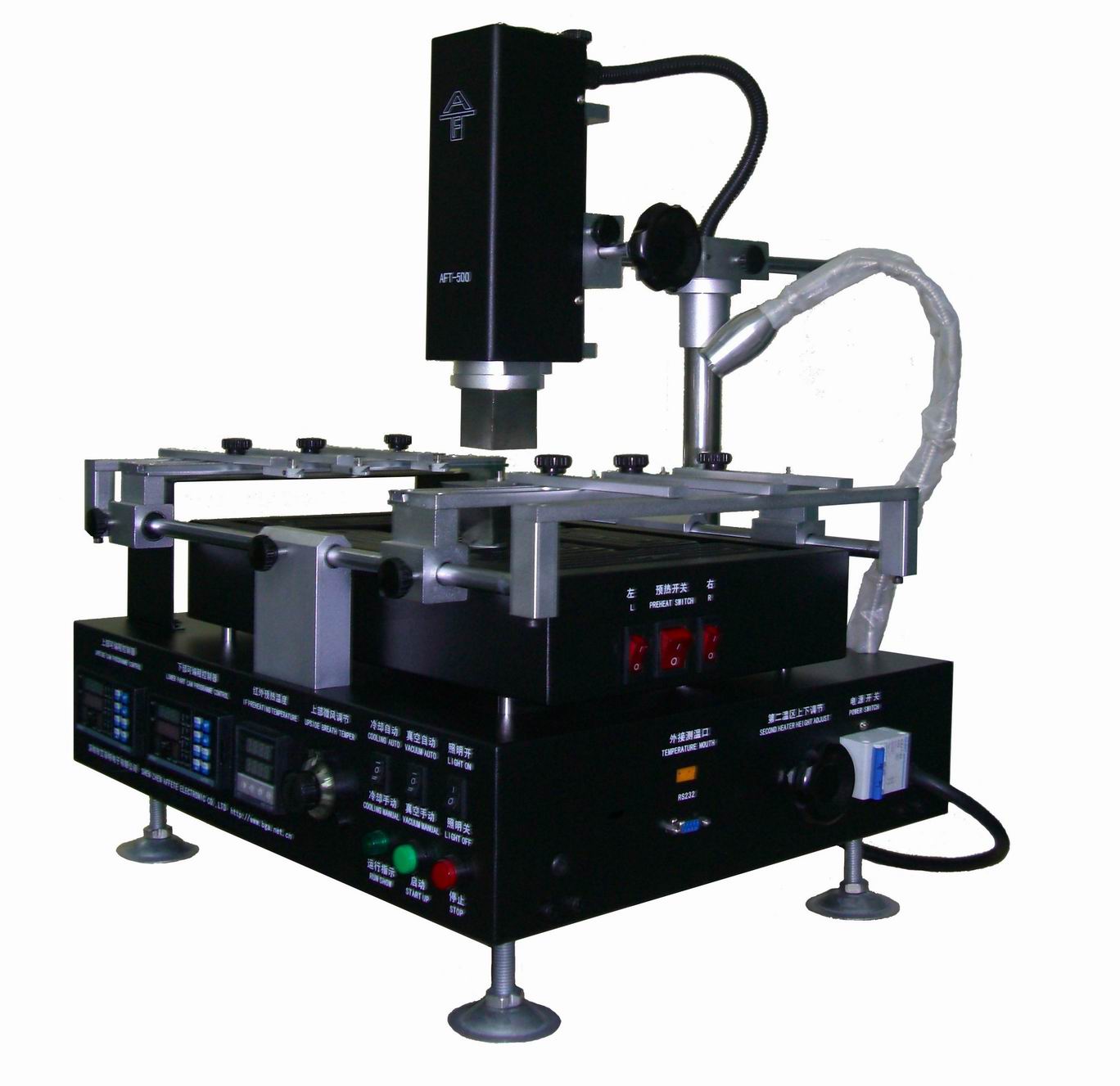

AFT-500B BGA Rework Station สินค้าพรีออเดอร์

SPECIFICATION

Rated Power: 4000W

Rated voltage:AC220V /AC110V optional

The first upper zone power: 800W

Second temperature lower power: 800W

Lower part of the preheating temperature zone Power: 2400W

Dimensions: L500mm * W420mm * H550mm

Weight: 28KG

Temperature control: high-precision closed-loop control of K-type thermocouple

PCB positioning: V-shaped slot, PCB holder can be X, Y direction adjustment

Can clamp PCB size: Max: 20mm * 20mm, Max: 320mm * 375mm

Scope: BGA, PBGA, CBGA, CFP, CPU, CSP, which are lead-free rework


Features:
1  Preheat independent infrared ceramic three-zone temperature control rework station, easy to lead-free rework.
2  high-power cross-flow cooling fan to accelerate the preheat zone to protect the continuous rework success rate.
3  bottom and top heating nozzle in use of high-end rework station mature design.
4  temperature options mature, high-end products in use temperature control program.
5  warm-up area may be permitted to independently control the size of PCB on.
6  Preheating control optimization, guaranteed preheat temperature.
