380400 / EXTECH RESISTANCE DECADE BOX

380400 : Resistance Decade Box

Resistance box with 7 decade ranges of resistance

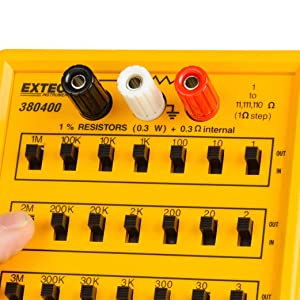

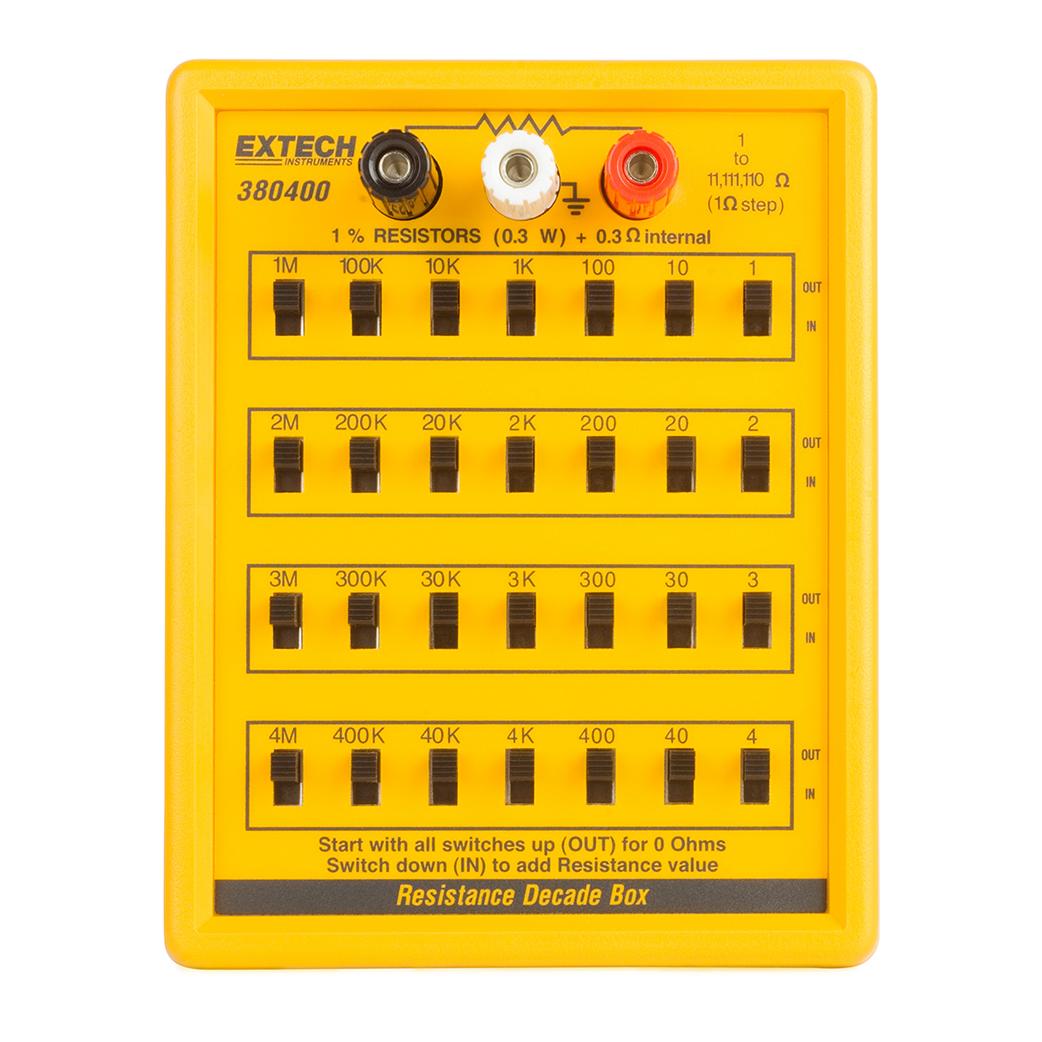

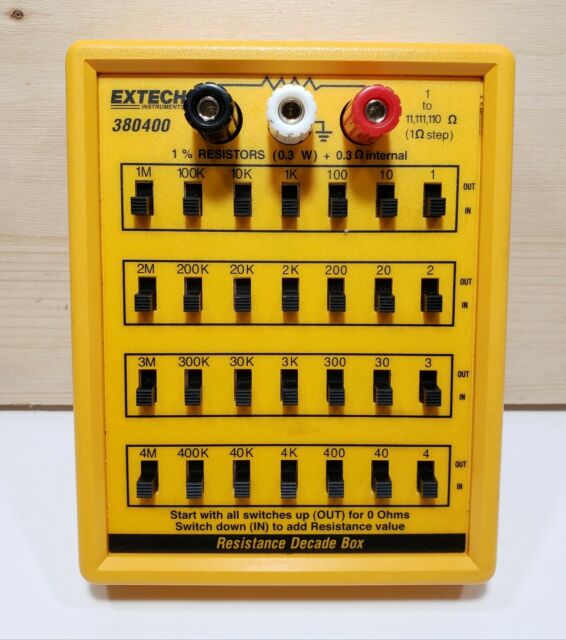

The Extech 380400 Resistance Decade Box is very popular for product design testing and calibration because it can be substituted into a circuit and function in the place of any component with a standard value easily. Alternatively, it can be used to identify the best value for circuit operation then read that value from the switches. Then, a resistor of the size indicated by the decade box switches can be put into the circuit.

Features

• Durable construction
• Case may be grounded separately
• 3 binding posts permit isolated substitutions
• 1% Resistance substitution from 1 to 11,111,110Ω
• Seven decade ranges of resistance
• Values can be set in 1Ω increments

Specifications
