IC DS18B20 TO92 เซนเซอร์อุณหภูมิ 18B20

IC DS18B20 TO92 Temperature Sensor

IC วัดอุณหภูมิอากาศ ใช้ง่าย

ข้อมูลเพิ่มเติม IC DS18B20 TO92 Temperature Sensor

• http://www.hobbytronics.co.uk/ds18b20-arduino
• https://arduino-info.wikispaces.com/Brick-Temperature-DS18B20

ตัวอย่างโคด Arduino IC DS18B20 TO92 Temperature Sensor

#include <OneWire.h>
#include <DallasTemperature.h>

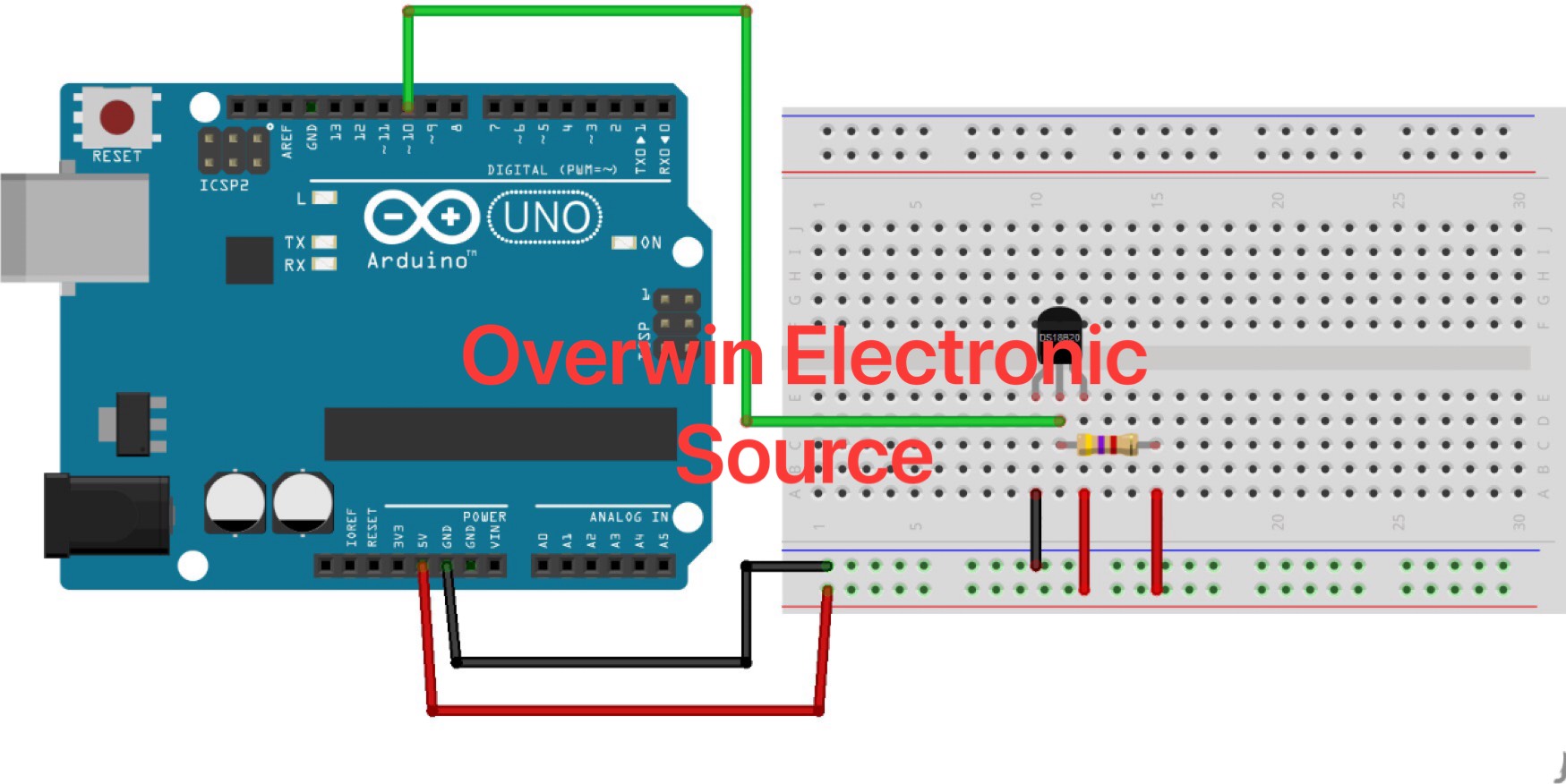

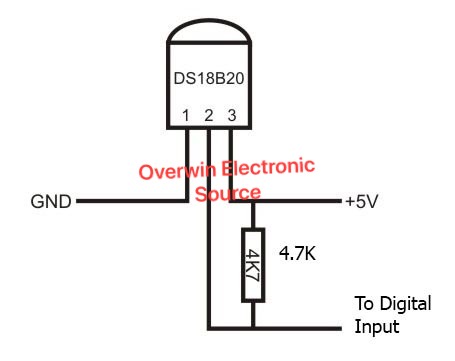

// Data wire is plugged into pin 2 on the Arduino
#define ONE_WIRE_BUS 2

// Setup a oneWire instance to communicate with any OneWire devices
// (not just Maxim/Dallas temperature ICs)
OneWire oneWire(ONE_WIRE_BUS);

// Pass our oneWire reference to Dallas Temperature.
DallasTemperature sensors(&oneWire);

void setup(void)
{
  // start serial port
  Serial.begin(9600);
  Serial.println("Dallas Temperature IC Control Library Demo");

  // Start up the library
  sensors.begin();
}


void loop(void)
{
  // call sensors.requestTemperatures() to issue a global temperature
  // request to all devices on the bus
  Serial.print(" Requesting temperatures...");
  sensors.requestTemperatures(); // Send the command to get temperatures
  Serial.println("DONE");

  Serial.print("Temperature for Device 1 is: ");
  Serial.print(sensors.getTempCByIndex(0)); // Why "byIndex"?
// You can have more than one IC on the same bus.
// 0 refers to the first IC on the wire

}
